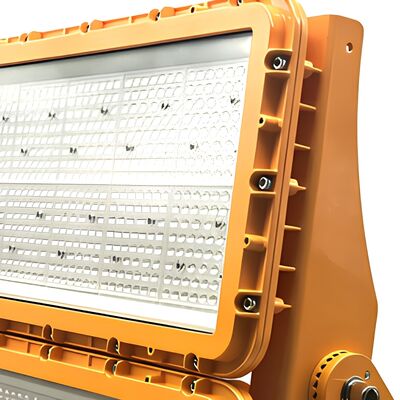

600W LED Explosion Proof Flood Light with 90° Wide Beam ATEX IIB T6 Certified and LUMILEDS SMD Chip
Productdetails:
| Plaats van herkomst: | Guangdong, China |
| Merknaam: | ECER |
| Certificering: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| Modelnummer: | RFEPL8280-600W-WF90 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10 stuks |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Doos verpakking + bubbel of op maat |
| Levertijd: | 10-15 dagen of bevestig |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 5000 stks/maand |
|
Gedetailleerde informatie |
|||
| Stroom: | 600W | Lichtefficiëntie: | 100-120LM/W |
|---|---|---|---|
| Led-chip: | LUMILEDS SMD (LM-80) | Stralingshoek: | 90° |
| Ingangsspanning: | Wisselstroom 100-277V | IP-classificatie: | IP65 |
| CRI: | ≥80 | Machtsfactor: | ≥0,95 |
| Materiaal: | Aluminium + gehard glas | Explosieveilige markering: | Ex db mb IIB T6 - IP65 - WF2 |
| bliksembeveiliging: | 6KV | Certificering: | ATEX, CE, ROHS, CCC |
| Levensduur: | 50.000 uur | Bedrijfstemperatuur: | -40°C tot +60°C |
| Zoutspraytest: | 500 uur (roestvrij staal) | ||
| Markeren: | 600W Wide Area Ex Light,90 Degree High Power Floodlight,LUMILEDS Refinery Hazardous Lighting |
||
Productomschrijving
The RFEPL8280-600W-WF90 is a 600W LED explosion proof flood light from the RFEPL8280 series, featuring ultra-wide 90° high-power flood with LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering in hazardous environments
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6, Zone 1/Zone 2 gas and Zone 21/Zone 22 dust
- 90° Beam Configuration - Ultra-wide 90° high-power flood optimized for specific application requirements
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning in any installation scenario
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate ensuring reliable 600W continuous operation
- 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations in lightning-prone regions
- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
- 600W Ultra-Wide 90° Coverage - Maximum illumination footprint for large refinery complexes, replacing multiple lower-wattage fixtures
- IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant for harsh industrial atmospheres
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical distribution systems
The RFEPL8280 series supports all standard mounting configurations:
- Ceiling mount
- Boom mount
- Bracket mount
- Wall mount
- Flange mount
- Guardrail mount
Engineered for large refinery complexes, petrochemical tank farms, and major process unit areas requiring maximum coverage:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and processing facilities
- Electric power generation and distribution stations
- Militar.y and defense hazardous installations
- Combustible dust environments (Zone 21, Zone 22)
- Emergency and normal lighting in classified areas
| Model Number | RFEPL8280-600W-WF90 |
|---|---|
| Item No. | RFEPL8280 |
| Power | 600W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 90° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
