300W LED Explosion Proof Flood Light IECEx Drilling Rig Offshore Platform IP67 Marine IP67 Die-Cast Aluminum ADC12
Productdetails:
| Plaats van herkomst: | Guangdong, China |
| Merknaam: | ECER |
| Certificering: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| Modelnummer: | EPFL-300W-DRL |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10 stuks |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Doos verpakking + bubbel of op maat |
| Levertijd: | 10-15 dagen of bevestig |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 5000 stks/maand |
|
Gedetailleerde informatie |
|||
| Stroom: | 300W | Lichtstroom: | 39000lm |
|---|---|---|---|
| Doeltreffendheid: | 130 lm/W | Stralingshoek: | 90° |
| Kleurtemperatuur: | 5000k | Led-chip: | Bridgelux SMD3030 |
| IP-classificatie: | IP67 | Materiaal behuizing: | Gegoten aluminium ADC12 met maritieme coating |
| Bedrijfstemperatuur: | -40°C tot +60°C | Certificering: | IECEx Ex d IIC T6 Gb |
| Levensduur: | ≥50.000 uur L70 | Garantie: | 5 jaar |
| Markeren: | 300W LED explosion proof flood light,IECEx drilling rig offshore platform light,IP67 marine die-cast aluminum flood light |
||
Productomschrijving
300W LED Explosion Proof Flood Light - IECEx Drilling Rig Offshore Platform IP67 Marine
The EPFL-300W-DRL is a 300W LED explosion proof flood light delivering 39000lm luminous flux with 130lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP67 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 39000lm total luminous flux at 130lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Drilling Rig Optimized - Vibration-dampened mounting system rated for continuous 5-15Hz drill floor vibration, with redundant cable gland entries for harsh offshore duty
- IP67 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance

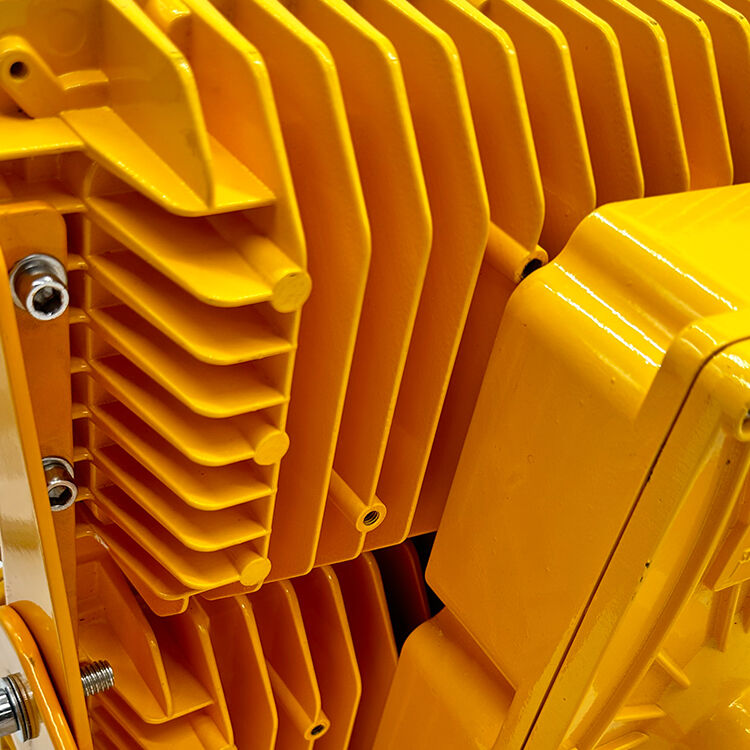

- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore drilling rigs, jack-up platforms, semi-submersibles, and open-deck marine classified zones:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-DRL |
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP67 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +60°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-DRL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
