50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | RFEPL |
| Certificering: | CE, ROHS, CCC, ATEX |
| Modelnummer: | RFEPL8280-300W-MB |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stuk |
|---|---|
| Prijs: | USD 309-599/Piece |
| Verpakking Details: | K=K-omdoos met binnenbescherming van EPE-schuim |
| Levertijd: | 15-25 werkdagen |
| Betalingscondities: | T/T,L/C,Western Union |
| Levering vermogen: | 5000 stuks per maand |
|
Gedetailleerde informatie |
|||
| Stroom: | 300W | Lumineuze werkzaamheid: | 100-120 lm/w |
|---|---|---|---|
| LED -chipmerk: | Lumileiden | LED-certificering: | LM-80 |
| Ingangsspanning: | AC100-277V | Machtsfactor: | ≥0,95 |
| Certificeringen: | CE, ROHS, CCC, ATEX | Explosieveilige standaard: | Ex db mb IIb T6 |
| Bescherming tegen binnendringing: | IP65 | Weerbescherming: | WF2 |
| Overspanningsbeveiliging: | 6KV | Kleurweergave-index: | CRI ≥80 |
| Materiaal behuizing: | Aluminium + gehard glas | Stralingshoekopties: | 30°/60°/90° (selecteerbaar) |
| Kabelspecificatie: | 1,0 mm² | Oppervlakteafwerking: | Schilderij Geel/Grijs |
| Nominale levensduur: | 50.000 uur (L90) | Bedrijfstemperatuur: | -40°C tot +60°C |
| Bedrijfsvochtigheid: | 10% tot 90% RH | ||
| Markeren: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
Productomschrijving

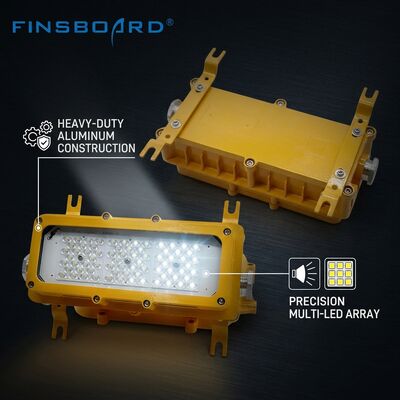

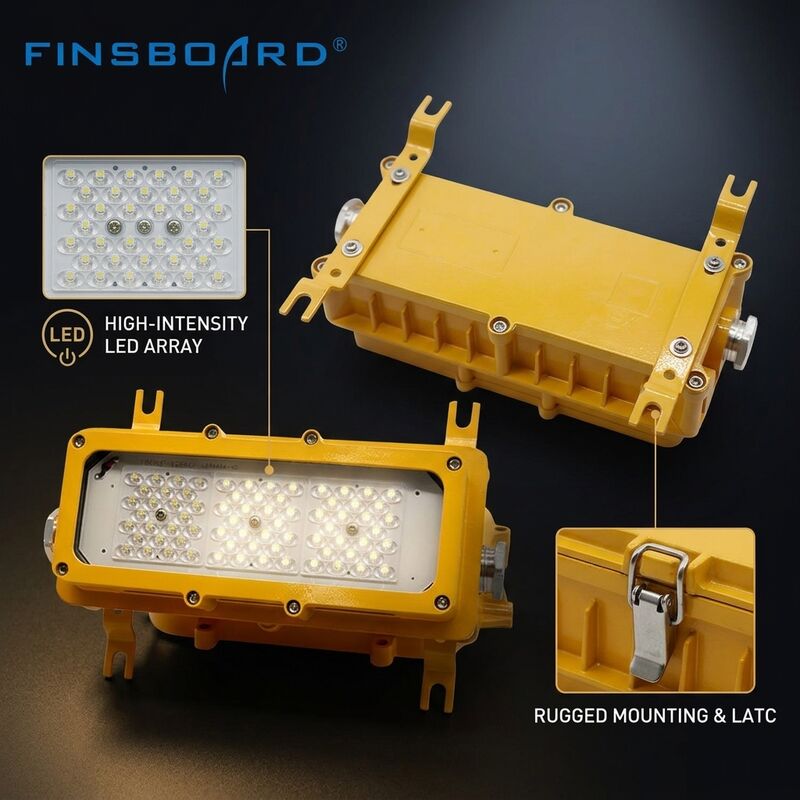

50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
